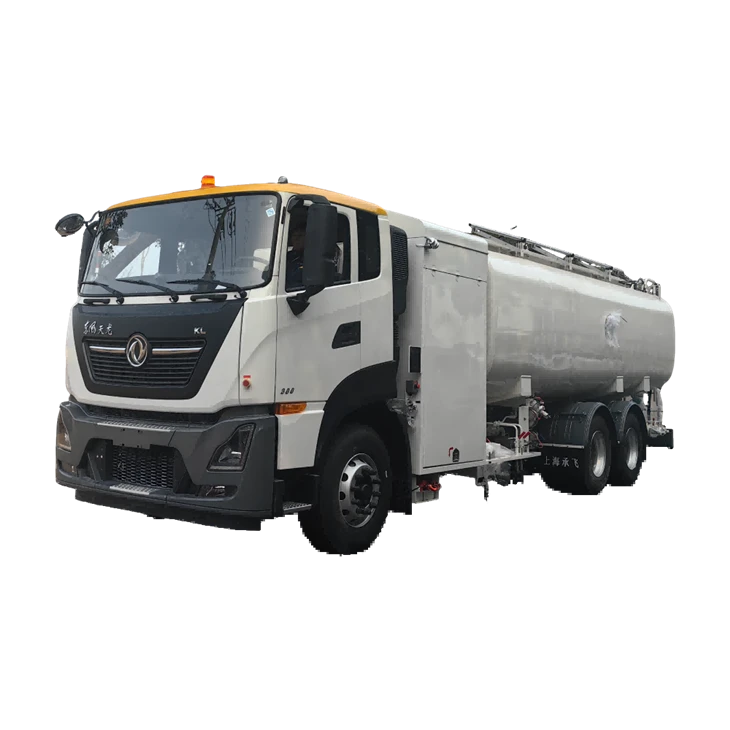

Davhlau Refueling Truck-6600 US Gallon
Yam khoom: Aircraft Refueler
✅ 25,000L / 6600 US Gallon loj - muaj peev xwm roj tank
✅ Dual siab (1000L / min) thiab lub ntiajteb txawj nqus (210L / min) refueling
✅ EI1581-raws li kev pom qhov system
✅ Deadman tswj nrog nws pib -kev nyab xeeb kaw
✅ CAUC & IATA ua raws li kev ua haujlwm
- Khoom Taw qhia
Khoom Taw Qhia
Lub CF5361GJY Aircraft Refueler yog tus kws tshaj lij- qib tsheb tsim thiab tsim los ntawm Shanghai Chengfei Tshwj Xeeb Aviation Equipment Co., Ltd. kom ua tau raws li qhov xav tau ntawm kev ua tau zoo, siab - qauv niaj hnub tshav dav hlau hauv av txhawb nqa. Tshaj nws qhov tseem ceeb27,000-liter roj muaj peev xwm, nws distinguishes nws tus kheej nrog ib tug tseem ceeb tsom rauntau yam ntse kev ruaj ntseg interlock systemsthiabprecision roj tuav modules uas ua tau raws li cov qauv kev dav hlau thoob ntiaj teb. Nws mob siab rau kev xa khoomultra- nyab xeeb, huv si, thiab ua haujlwm tau zooJET A-1 refueling services rau ntau yam dav dav - lub cev thiab nqaim-lub dav hlau.
khoom parameter
| Cov khoom npe | Aircraft Refueler | Rated Peev Xwm | 25000 L |
| Cov khoom qauv | CF5361GJY | Pressurized fueling tus nqi | 1000L / min |
| Chassis hom | BENZ Arcs | Lub ntiajteb txawj nqus refueling flow | 210L / min |
| Zuag qhia tag nrho Dimensions (L × W × H) | 10750 × 2550 × 3220 hli | Defueling reel hose flow | 350L / min |
| Qhov hnyav | 13 300 Kg |
Siab coil 2 " hose ntev |
25 m |
|
Qhov siab tshaj plaws tag nrho (Lub Hoobkas Qhia) |
3 3430kg |
Lub ntiajteb txawj nqus reel 1.5 " hose ntev |
15 m |
| Lim Standard |
Ua raws li EI 1581 (Xov Xwm Kawg) |
Rated Ua Haujlwm Siab | 0.6 MPa rau |
| Flow Meter Accuracy | ±0.2% | Ua haujlwm kub | -20℃rau +50 degree |
| Cov ntsiab lus tseem ceeb | Centrifugal twj tso kua mis | Gorman{0}}Rup 03H1-GR, Tus kheej -Priming |
| Siab tswj Valve (PCV) | Avery Hardoll CCMY8600M2los yog sib npaug | |
| Lim -Separator | Imported hom,Ua raws li EI 1581, nrog DP gauge | |
| Flow Meter | Siab - qhov tseeb qhov zoo ntawm qhov ntsuas qhov ntsuas nrog cov khoom siv hluav taws xob & lub tshuab luam ntawv | |
| Cov qauv kev nyab xeeb | Interlock System | 8-Point Inductive Full-Vehicle Interlock(PTO, Couplings, Grounding, thiab lwm yam) |
| Kev kaw thaum muaj xwm ceev | Ntau - khawm khawmhauv cab & platform + tiv thaiv - kev sib tsoo kov pas nrig | |
| Static Discharge | Drag chain +25-meter reel-type static grounding cable, Resistance Tsawg dua los yog sib npaug rau 10Ω | |
| Hluav Taws Xob | Standard 2 × 8kg Qhuav Powder Fire Extinguishers |
Technical Highlights & Differential Advantages
Core Safety Architecture: Ntau-Txheej Txheem Kev Tiv Thaiv Tshaj Tawm
Tsheb -Wide Intelligent Interlock Braking System: Features kev lag luam-ua8-point kev paub qhov systemuas saib xyuas cov xwm txheej ntawm cov khoom tseem ceeb xws li refueling couplings, static grounding cables, log chocks, thiab tank -stop guardrails real{1}}time. Yog hais tias ib qho taw tes tsis ruaj ntseg, lub tsheb lub zog system yogcia li kaw, tshem tawm tag nrho cov kev pheej hmoo ntawm kev ua haujlwm yuam kev.
Dual -Redundancy Emergency Shut- tawm: Ntxiv rau tus qauv "Deadman" kov (nws pib-shutoff li ntawm 3-5 vib nas this tom qab tso tawm), ib qho"Override Deadman" hloov xwm txheej ceevyog ntsia rau ntawm qhov ntsuas vaj huam sib luag. Qhov no ua kom tswj tau cov roj kaw txawm tias qhov tshwm sim tsis zoo ntawm qhov kev tswj hwm thawj zaug tsis ua haujlwm.
Tag Nrho -Tshav Tsheb tawg-Cov ntaub ntawv pov thawj & Shutdown Design: Lub tshuab hluav taws xob siv hluav taws xob tawg - cov khoom pov thawj.Thaum muaj xwm ceev shutdown kov rodstau nruab ib ncig ntawm lub platform ua haujlwm; kev sib cuag los ntawm txhua qhov kev taw qhia yuav ua rau lub cav kaw tam sim.
Fuel Quality Assurance: Ib Txoj Kev Huv Huv ntawm Tank mus rau Wing
Ua tau zoo Peb -Theem Purification Process: Roj tau ua raws li kev ua kom huv huv los ntawm kev sib haum xeeb ntawm lub tank, hloov lub twj tso kua mis centrifugal, thiab cov khoom xa tuaj.lim- cais raws li tus qauv EI 1581 tshiab. Chav tsev no tshem tawm cov micron- cov khib nyiab loj thiab sib cais cov dej dawb zoo, ua kom cov roj tso tawm kom huv si deb tshaj qhov yuav tsum tau ua hauv kev lag luam.
Tsis tu ncua Precision Control Technology: Ua haujlwm lub npe nrov thoob ntiaj teb4-nti Inline Pressure Control Valve (PCV), ua hauj lwm nyob rau hauv tandem nrog ib tug venturi sensor. Nws tuav cov zis siab nyob rau hauv ib tug nqaim ntau yam txawm nyob rau hauv lubQhov siab tshaj plaws ntws ntawm 1000 L / min, zoo tiv thaiv lub dav hlau roj system los ntawm siab surges.
Tiag tiag -Tsev Sijhawm Saib Xyuas & Kev Ntsuas Ntsuas: Nruab nrog lub siab -cov khoom siv hluav taws xob txaus siab thiab qhov ntsuas qhov sib txawv hauv online rau qhov tseeb- lub sij hawm ntws thiab lim dej saib xyuas. Akaw -circuit samplertso cai rau yooj yim ua ntej - thiab tom qab- refueling sampling rau kev soj ntsuam pom thiab daim nyias nyias, kom ntseeg tau traceability rau txhua liter roj.
Ua haujlwm zoo Ergonomics & Txhim khu kev ntseeg tau
Modular Pneumatic & Hluav Taws Xob Systems: Cov tub ntxhais pneumatic tswj chav tsev nta cov qauv tsim nrog lub ntsiab li qub los ntawm cov khoom lag luam thoob ntiaj teb, ua kom cov lus teb ceev thiab kev saib xyuas yooj yim. Lub tshuab hluav taws xob yog centrally tswj los ntawm aProgrammable Logic Controller (PLC), ua kom yooj yim dua kev kuaj xyuas qhov txhaum.
Dual{0}}Txoj haujlwm yooj yim: suav nrog a25-meter siab hoserau siab -flow underwing refueling.
Ib qho yeem15-meter gravity hoserau dav dav dav hlau overwing refueling yog muaj, ua rau lub tsheb ntau yam thiab nce kev siv cuab tam.
Premium Powertrain: Ua rau ntawm qhov pov thawj Dongfeng coj mus muag tsheb chassis ua ke nrog ib qhoAmerican Gorman-Rupp tus kheej-priming centrifugal twj tso kua mis, xa cov zis hluav taws xob ruaj khov thiab txhim khu kev qha rau siab - siv zog ua haujlwm ib puag ncig.
Kev pabcuam
Vim Li Cas Xaiv Peb
Xaiv CF5361GJY txhais tau tias ntau dua li xaiv lub refueler; koj nqis peev nyob rau hauvtechnology embodiment ntawm Tuam Tshoj lub teb chaws aviation roj pab neeg. Kev siv lub ntiaj teb kev ua haujlwm ntawm peb lub tuam txhab niam txiv (Tuam Tshoj National Aviation Fuel Group), peb muaj kev nkag siab tob txog qhov tseem ceeb ntawm kev nyab xeeb aviation. Yog li ntawd, peb integrate lub philosophy ntawm"kev nyab xeeb kiag li" thiab "zero fuel contamination"rau hauv txhua yam ntawm peb cov khoom. Peb muab tsis yog cov cuab yeej siv xwb, tab sis akev ruaj ntseg kev cog lusuas coj kev thaj yeeb nyab xeeb rau cov neeg caij dav hlau thiab ua kom yooj yim rau kev khiav haujlwm.
